KUBE III LOTTERY
High-performance thermal printer with stacker
KUBE III LOTTERY
Powerful and ultra-fast, 220 mm/sec, Paper width, 80/82.5 mm, Exceptional print autonomy, 150 mm diameter paper roll, Stacker and For collecting up to 50 tickets.
Key points
KUBE III LOTTERY
High speed and performance
Prints up to 220 mm/sec with high-quality logos and graphic coupons.
80/82.5 mm paper
Supports 150 mm diameter rolls for high print autonomy.
Integrated stacker
Collects up to 50 tickets neatly.
Barcodes and international fonts
Supports 1D/2D codes and characters for all languages.
Reliability and durability
Long-life printhead and cutter for over 1 million cuts.
Applications
KUBE III LOTTERY is designed for the following applications
Betting
Gaming
Lottery
Gallery

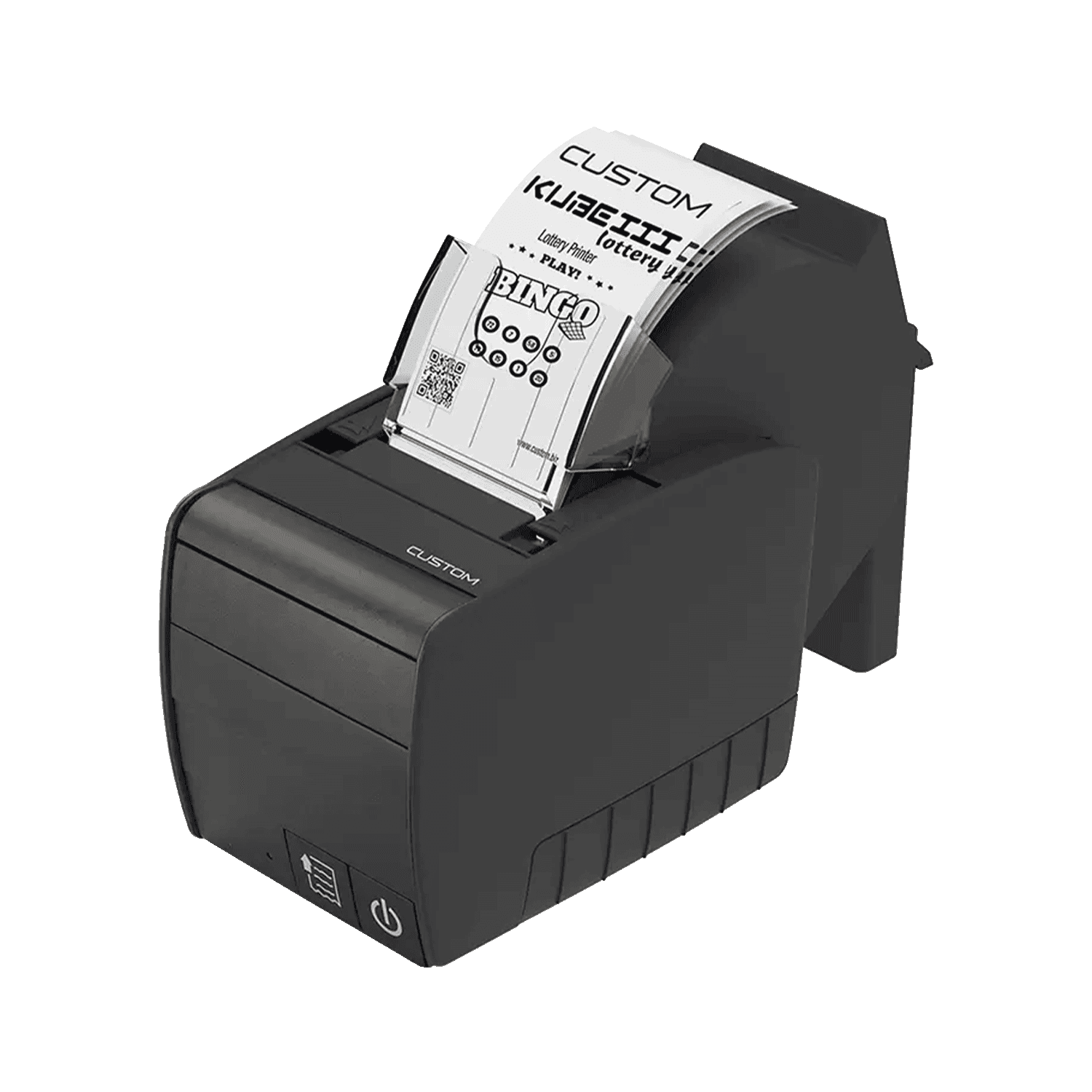

KUBE III LOTTERY from every angle
Technical sheet
Technical sheet
| Printing method | Thermal, fixed head |
|---|---|
| Resolution | 200 dpi (8 dots/mm) |
| Printing speed | 220 mm/sec |
| Stacker | Up to 50 tickets |
| Character set | USA; Katakana; Multilingual; Portuguese; French; Nordic; WPC1252; Cyrillic 2; Euro; Hebrew; Arabic; Latin 2; Cyrillic; Greek; Turkish; Baltic; Vietnamese |
| Supported barcodes | UPC-A; UPC-E; EAN13; EAN8; CODE39; ITF; CODABAR; CODE93; CODE128; CODE32; PDF417 |
| Paper width | 80 mm; 82.5 mm |
| Paper weight | 70-90 g/m² |
| Printing width | 80 mm |
| External roll diameter | 150 mm |
| Sensors | Paper presence; head temperature; black mark detection; open cover; paper near end |
| Emulation | CUSTOM/POS |
| Interfaces | RS232; USB |
| Data buffer | 20 kB |
| Print driver | Windows®; Linux CUPS; Android™; JavaPOS; OPOS |
| Software tools | PrinterSet for Windows®; PrinterSet for Linux; Android™ PrinterSet; Custom Linux UPG; Virtual COM; CustomPowerTool; Custom Windows® API; Custom Android™ API |
| Power supply | 24 Vdc ± 10% |
| Typical consumption | 1.5 A |
| Head life | 100 km / 100M pulses |
| Cutter | Full cut |
| Cutter life | Over 1,000,000 cuts |
| Dimensions (D x W x H) | 297 x 140 x 216 mm |
| Weight | 2.5 kg |
| Package contents | Device; quick guide; AC power adapter; AC power cable; USB cable |
Models
All available models
911LZ010500333
PRINTER KUBE III LOTTERY USB RS232
