KX60
Design, Super compact, Two models, Horizontal (H) and Vertical (V), Robust cutter, Full and partial cut, Ease and Of inspection and use.
Key points
KX60
Design
Ultra-compact.
Two Models
Horizontal (H) and Vertical (V).
Robust Cutter
Full and partial cut.
Ease of Use
Easy to inspect and operate.
Roll Holder and Paper Outlet
Integrated

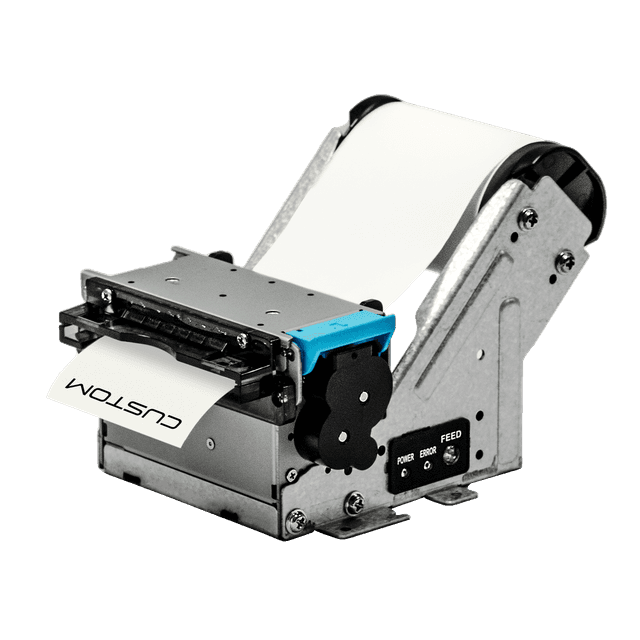

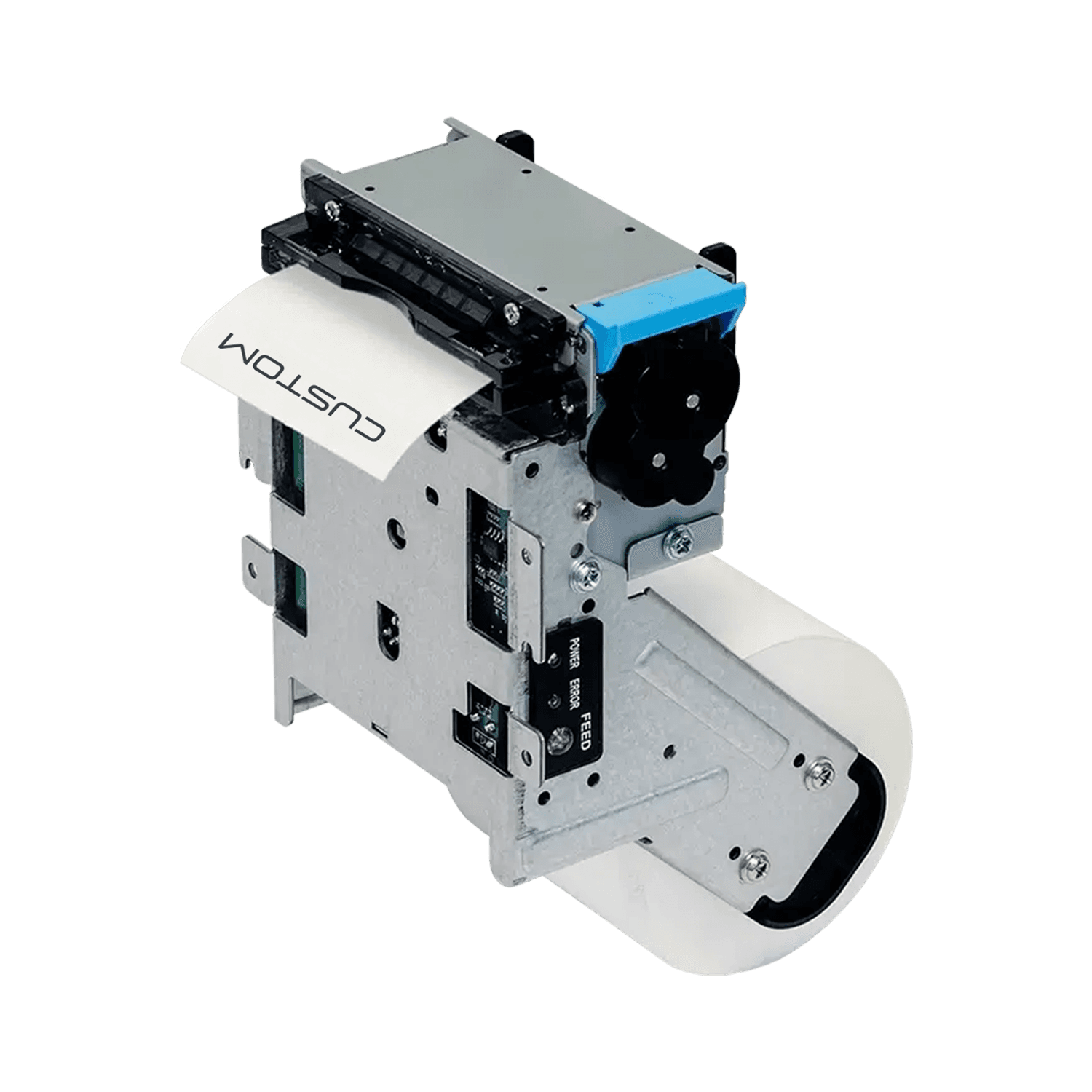

Gallery
KX60 from every angle
Technical sheet
Technical sheet
| Printing method | Thermal with fixed head |
|---|---|
| Resolution | 200 dpi (8 dots/mm) |
| Printing speed (max) | 200 mm/sec |
| Paper width | 60 mm |
| Paper weight | 50-110 g/m² |
| External roll diameter | 100 mm |
| Roll core diameter | 12 mm |
| Sensors | Head temperature; paper presence; notch detection; external near-paper-end sensor |
| Emulation | ESC/POS™ |
| Interfaces | RS232; USB |
| Print Driver | Windows® (32/64 bit); CUPS Linux (32/64 bit) Debian and Red Hat; Android™; Printer Driver Installer |
| Software Tools | Memory Switch Setting Utility; Logo Setup Tool; Firmware Update |
| Special features | Paper mouth included; roll holder clip included; near-paper-end sensor included; horizontal or vertical version |
| Power supply | 24 Vdc ± 10% |
| Cutter | Full or partial cut |
| Cutter life | 1.000.000 cuts |
| Operating temperature | -20°C ~ 60°C |
| Dimensions (L x W x H) | KX60H: 98.1 x 151.3 x 119.2 mm KX60V: 98.1 x 119.2 x 177.1 mm |
| Weight | 0.38 Kg |
| Box contents | device; quick guide; power cable harness |
Models
All available models
915PF010100300
PRINTER KX60 HORIZONTAL USB RS232 WITH ROLL HOLDER
915PF010200300
PRINTER KX60 VERTICAL USB RS232 WITH ROLL HOLDER
