SM425
Among the listed features are Excellent reading performance in low light environments and on labels and smartphones, Drop resistant from 150 cm, Fully configurable with the ScannerSet software, IP42 protection against water and dust, and a Wireless Bluetooth barcode reader with a charging cradle included.
The specifications also specify markets and operational details such as Outstanding reading performance for Databar 1D, 2D, and GS1 codes, e.g., QR codes even with 30% damage or missing pattern and Supports automatic reading and can operate in dark environments at 0 Lux.

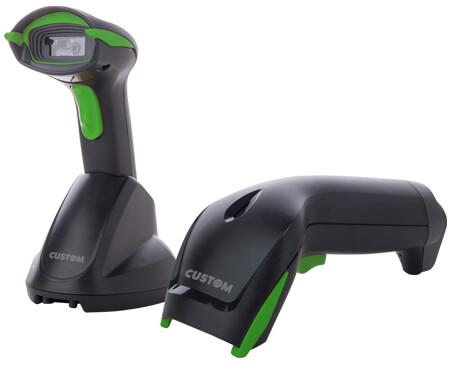

Gallery
SM425 from every angle
Technical sheet
Technical sheet
| SM425 | |
|---|---|
| GENERAL | |
| Interfaces | USB, USB HID, VCOM |
| Supported barcodes (1D) | 1D: UPC-A, UPC-E, EAN-8 / JAN-8, EAN-13 / JAN-13, Code 39, Code 128, Interleaved 25, Industrial 25, Matrix 25, Codabar / NW7, Code 93, China Posta, MSI / Plessey, Telepen, GS1 Databar Omni-directional, GS1 Databar Limited, GS1 Databar Expended Option: Aztec, Micro PDF 417, Micro QR Code, Han Xin Code, GM Code |
| Supported barcodes (2D) | 2D: Data Matrix, PDF 417, QR Code / Option: Aztec, Micro PDF 417, Micro QR Code, Han Xin Code, GM Code |
| PERFORMANCE | |
| Light source | LED white leg |
| Sensor | CMOS sensor |
| Scan rate | 60 fps (at full resolution) |
| Reading distance | 250mm @ 20mil / 0.5mm, PCS90% |
| Print contrast ratio | PCS30% @ 5mil / 0.127mm |
| Resolution | 3 mil / 0.076mm @ PCS90% Code39 / 8mil / 0.2mm @ PCS90% QRCode |
| ENVIRONMENTAL | |
| Operating temperature | 0°C to 50°C (32°F to 122°F) |
| RELIABILITY | |
| Life / MTBF (calculated) | 50,000 hours |
| PHYSICAL | |
| USB cable | - |
| Material | ABS /plastic |
| Dimensions | 73.50 mm (W) x 173 mm (D) x 76.2 mm (H) |
Models
All available models
995ED030200A33
SM425 SCANMATIC BARCODE SCANNER 2D WIRELESS
