SM600
Among the listed features are Scans most 1D and 2D barcodes on paper, mobile phones, and computer displays, With compact dimensions and minimal footprint, it can fit into small spaces, Supports automatic, hands-free scanning, The multi-code mode allows simultaneous scanning of multiple barcodes, and the scanner head can be adjusted forward and backward within a total range of 180° to suit your application.
Gallery

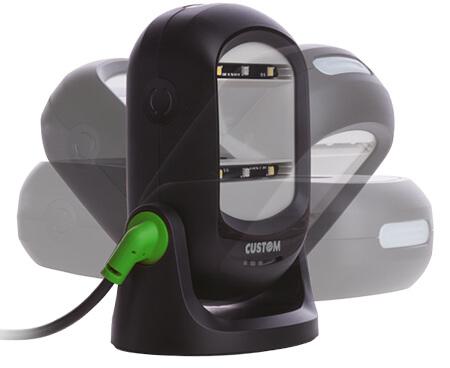

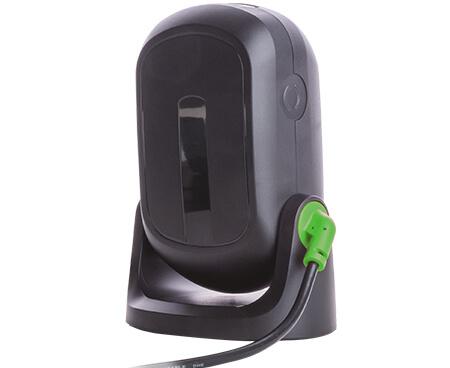

SM600 from every angle
Technical sheet
Technical sheet
| SM600 | |
|---|---|
| Interface | USB, USB HID, VCOM |
| Barcodes Supported (1D) | UPC-A, UPC-E, EAN-8/JAN-8, EAN-13/JAN-13, Code 39, Code 128, Interleaved 25, Industrial 25, Matrix 25, Codabar/NW7, Code 93, China Post, MSI/Plessey, Telepen, GS1 Databar Omni-directional, GS1 Databar Limited, GS1 Databar Expended |
| Barcodes Supported (2D) | Data Matrix, PDF 417, QR Code, Micro PDF 417, Micro QR code, Aztec, Dotcode, Maxi Code, Han Xin Code |
| Light Source | LED white leg |
| Field of View | Horizontal -55°, Vertical -35° |
| Scan Rate | 60 fps (frame per second) |
| Reading Distance | 250mm @ 20mil / 0.5mm, PCS90% |
| Resolution | 1280 (H) x 800 (V) pixels / 3.0 mil (Code 39), 8 mil (QR Code) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Life Time MTBF (calculated) | 50,000 hours |
| USB cable | 315 gr |
| Material | ABS /plastic |
| Dimension | 97,89 mm (W) x 74,90 mm (D) x 137,94 mm (H) |
| Barcode mil/Depth of Field mm | 3mil Code39 40~60 mm / 4mil Code39 35~85 mm / 5mil Code39 35~95 mm / 10mil Code39 25~150 mm / 20mil Code39 20~200 mm 20mil QR Code 20~120 mm / 20mil PDF417 20~90 mm / 20mil Data Matrix 20~160 mm |
Models
All available models
995ED044000333
SM600U PRESENTATION BARCODE SCANNER 1D/2D
