TK202III METAL - TK302III METAL
Reliable, high-performance aviation printers with a metal body
TK202III METAL - TK302III METAL
TK302III Metal is the robust ATB and BTP ticket printer for AEA CUTE and CUPPS with integrated autocutter (TK202III Metal with tear-off bar on 2 sides), characterised by excellent reliability and maximum flexibility thanks to unique options such as RFID and the metal vertical ATB tray with motorised ejector. Specifically designed for terminals with a high annual passenger volume and for the regular issuing of ATB tickets. TK302III Metal can easily be configured as an ATB or BTP device during installation. The native AEA/ITPS firmware allows for straightforward integration into any software architecture, without the need for any driver or additional software layer. The large LCD display always ensures perfect readability even in bright light conditions. The optional Multi Feeder allows different ATB media to be managed, such as “economy class”, “first class” and “business class”.
Key points
TK202
Ultra-resistant ATB/BTP
Robust solution for high-volume passenger terminals.
High reliability
Designed for continuous issuing and intensive workloads.
Tear-off or autocutter
TK202III Metal with tear-off bar, TK302III Metal with autocutter.
Advanced management
Auto-loading, ticket length detection and dot protection.
Airport standards
Compatible with CUTE/CUPPS, AEA/ITPS 2007-2022, ATB/BTP/GPP.

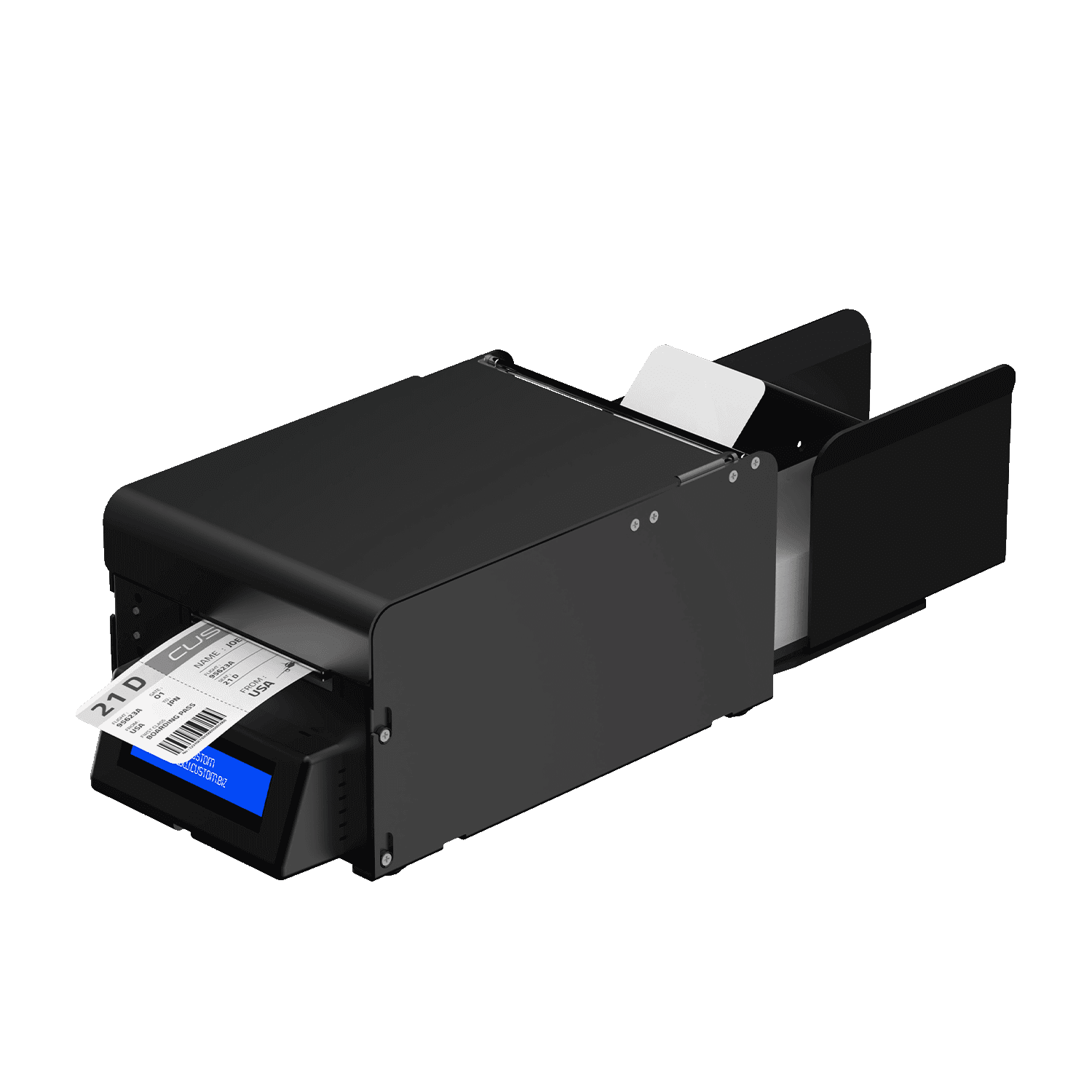

Gallery
TK202III METAL - TK302III METAL from every angle
Technical sheet
Technical sheet
| Printing method | Thermal with fixed head |
|---|---|
| Resolution | 200 dpi (8 dots/mm) |
| Printing speed (max.) | 200 mm/sec |
| Paper width | Compliant with IATA Resolution 740, 722e and RP 1740 |
| Paper thickness | According to IATA specifications |
| Paper roll diameter | 300 mm |
| Supported barcodes | UPC-A; UPC-E; EAN13; EAN8; CODE39; ITF; CODABAR; CODE93; CODE128; CODE32; PDF417; DATAMATRIX; AZTEC; QR CODE |
| Sensors | Paper presence; print head temperature; paper presence at output; adjustable black mark or translucent gap/hole detectors; cover open; optional near paper end; automatic cutter error |
| Emulation | ATB; BTP; GPP |
| Firmware | Native AEA/ITPS support from 2007 to 2022 |
| Interfaces | RS232; USB; Ethernet |
| Drivers | Windows® (32/64 bit); CUPS Linux (32/64 bit); Virtual COM (32/64 bit); Android™ |
| Software tools | PrinterSet; CustomPowerTool; Status Monitor; Custom Windows® API; AeroVcomService remote monitor configuration tool |
| Power supply | 24 Vdc ± 10% |
| Typical consumption | 0.8 A |
| Print head life | 100 km / 100M pulses |
| Cutter | TK302III Metal: automatic cutter; TK202III Metal: two-sided tear bar |
| Cutter life | TK302III Metal: 1,500,000 cuts on thick paper |
| Operating temperature | 0°C ~ 40°C |
| Dimensions (L x W x H) | TK302III Metal: 321 x 178 x 134.5 mm; TK202III Metal: 306 x 178 x 134.5 mm |
| Weight | 6.6 kg |
| Package contents | Device; quick guide; power supply |
Models
All available models
911BB060300733
PRINTER TK302III METAL EJC ETH USB RS232 AVIATION
911BD060300333
PRINTER TK202III METAL USB RS232 AVIATION
