TK862
Advanced boarding pass and bag tag printer
TK862
Ultra durable, Highly reliable and robust, Very fast and powerful, Same model for ATB and BTP, and Contact Imager (CIS) sensors for detecting empty spaces instead of traditional black notch sensors, to improve reliability and reduce cleaning and alignment operations, virtually compatible with any brand/hole/logo.
Other listed elements include Veriprint Barcode Validation (optional), Extra durable cutter, RFID (optional), Prevention of Damaged Dots, Automatic ticket length detection, and Fully automatic paper loading without waste.
Key points
TK862
Ultra-resistant ATB/BTP
Robust, fast and designed for intensive workloads.
Low TCO
Metal casing, Energy Star certification and reduced operating costs.
Advanced CIS
Detects gaps, holes and logos, reducing cleaning and adjustments.
Veriprint® and RFID
Instant barcode validation and optional RFID for future requirements.
Airport standards
Compatible with CUTE/CUPPS, AEA/ITPS 2007-2022 and AERO VCOM SERVICE.

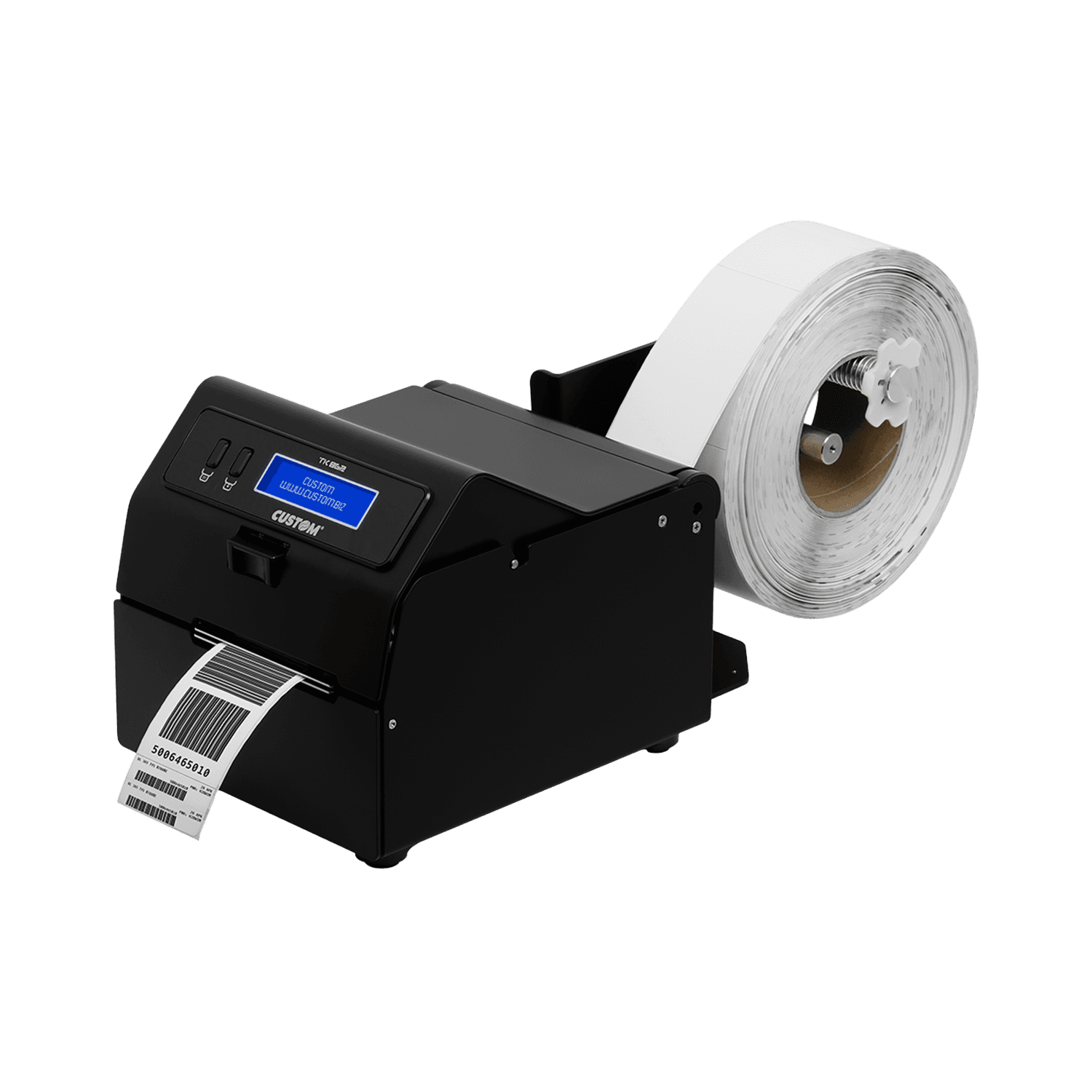

Gallery
TK862 from every angle
Technical sheet
Technical sheet
| Printing method | Thermal, fixed head |
|---|---|
| Resolution | 200 dpi (8 dots/mm) |
| Printing speed (max.) | 220 mm/sec |
| Paper width | Compliant with IATA Resolution 740, 722e and RP 1740 |
| Paper thickness | As per IATA specifications |
| Paper roll diameter | 150 mm with Dual Feeder; 300 mm for Standard, Ejector and VeriPrint configurations |
| Supported barcodes | UPC-A; UPC-E; EAN13; EAN8; CODE39; ITF; CODABAR; CODE93; CODE128; CODE32; PDF417; DATAMATRIX; AZTEC; QR CODE |
| Sensors | Paper presence; head temperature; paper-out presence; CIS for black mark or gap/translucent hole; open cover; optional paper near end; automatic cutter error |
| Emulation | ATB; BTP; GPP |
| Firmware | Native AEA/ITPS support from 2007 to 2022 |
| Interfaces | RS232; USB; Ethernet |
| Driver | Windows® (32/64 bit); CUPS Linux (32/64 bit); Virtual COM (32/64 bit); Android™ |
| Software tools | PrinterSet; CustomPowerTool; Status Monitor; Custom Windows® API; AeroVcomService |
| Power supply | 24 Vdc ± 10% |
| Typical consumption | 1.46 A |
| Head life | 100 km / 100M pulses |
| Cutter | Automatic cutter |
| Cutter life | 1,500,000 cuts on high-thickness paper |
| Operating temperature | 0°C ~ 40°C |
| Dimensions (D x W x H) | TK862: 216 x 170 x 173 mm; TK862 Ejector: 223 x 170 x 173 mm, roll holder not included |
| Weight | 4.85 kg |
| Package contents | Device; quick guide; power adapter |
Models
All available models
911LU010400733
PRINTER TK862 ETH USB RS232 AVIATION
911LU010800733
PRINTER TK862 EJC ETH USB RS232 AVIATION
911LU011400733
PRINTER TK862 EJC DF ETH USB RS232 AVIATION
911LU020300733
PRINTER TK862 VERIPRINT ETH USB RS232 AVIATION
