TK180
TK180 is the most compact combined ATB and BTP printer with native AEA/ITPS firmware for seamless integration into CUTE and CUPPS platforms. Specifically designed for small check-in desks where space is limited, TK180 can handle ATB tickets as well as GPP paper rolls. Support for baggage tags is provided by the optional paper roll holder. TK180 can easily be configured as an ATB or BTP device during installation. TK180 has an automatic sensor calibration function that is triggered automatically every time paper is loaded, preventing any waste of tickets, thereby contributing to environmental sustainability and reducing management costs.
Key points
TK180
Compact ATB/BTP
Single model for boarding passes, bag tags and GPP rolls.
Ideal for check-in
Compact and elegant design for counters with limited space.
Automatic calibration
Self-adjusting sensors to prevent waste and reduce costs.
Waste-free management
Auto-loading, ticket length detection and dot protection.
Airport standards
Compatible with CUTE/CUPPS, ATB, BTP and GPP emulations, with optional RFID.

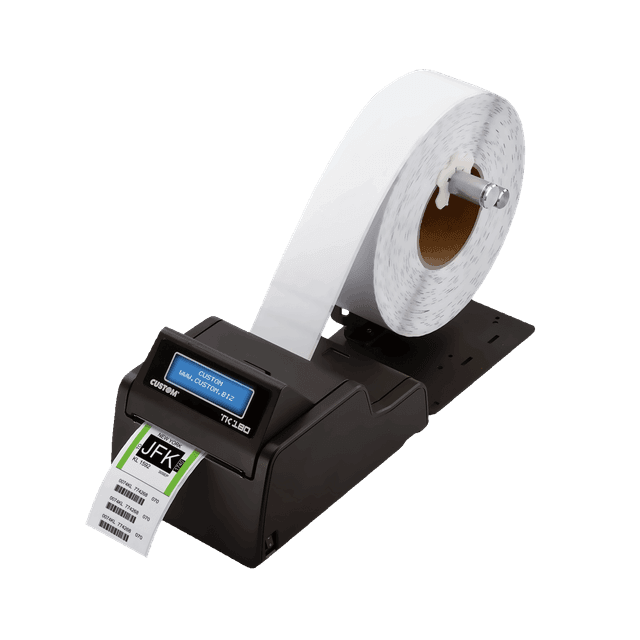

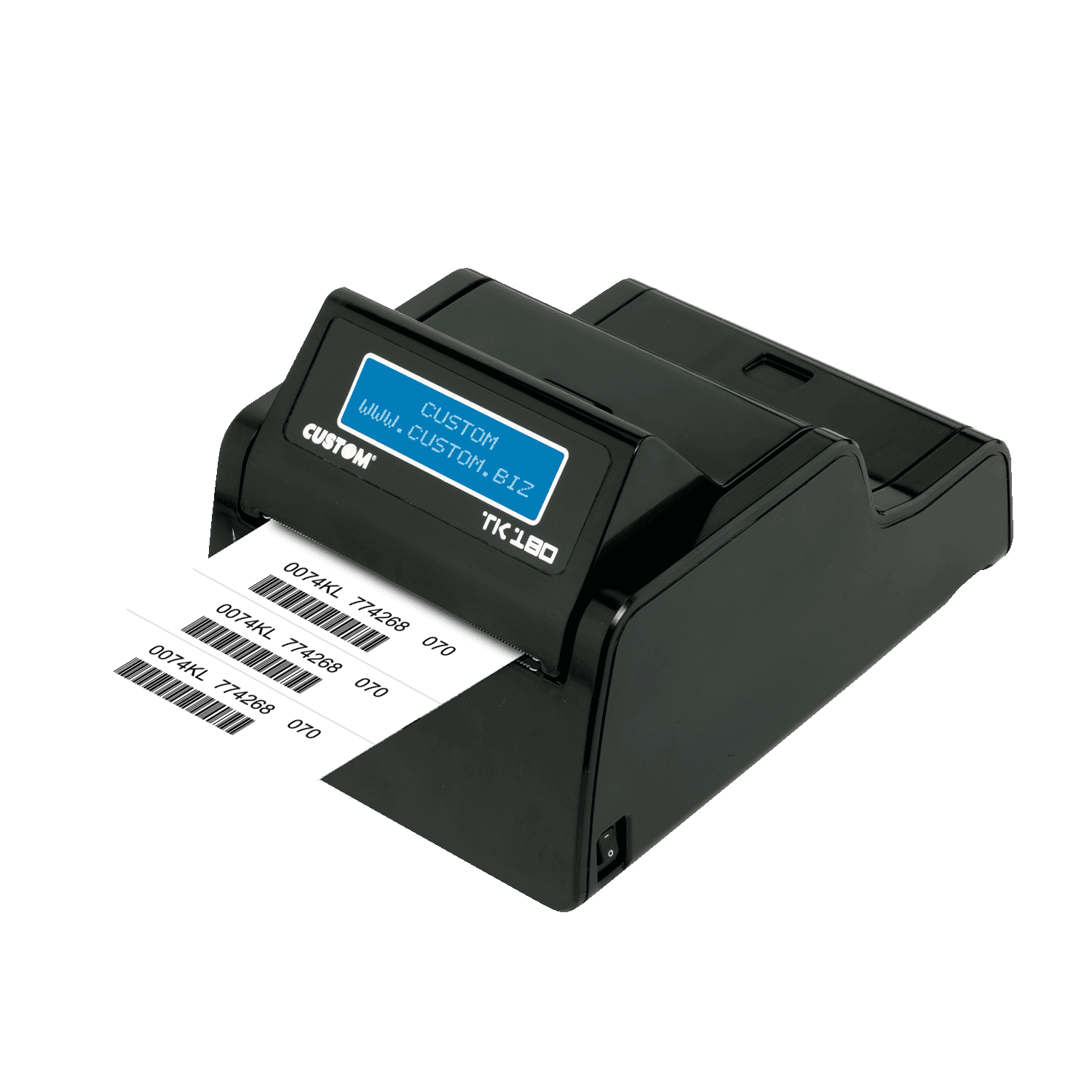

Gallery
TK180 from every angle
Technical sheet
Technical sheet
| Printing method | Thermal with fixed head |
|---|---|
| Resolution | 200 dpi (8 dots/mm) |
| Printing speed (max.) | 200 mm/sec |
| Paper width | Compliant with IATA Resolution 740, 722e and RP 1740 |
| Paper thickness | According to IATA specifications |
| Paper roll diameter | 200 mm |
| Supported barcodes | UPC-A; UPC-E; EAN13; EAN8; CODE39; ITF; CODABAR; CODE93; CODE128; CODE32; PDF417; DATAMATRIX; AZTEC; QR CODE |
| Sensors | Paper presence; print head temperature; paper presence at output; black mark or translucent gap/hole detector; cover open; optional near paper end |
| Emulation | ATB; BTP; GPP |
| Firmware | Native AEA/ITPS support from 2007 to 2022 |
| Interfaces | USB; RS232; Ethernet |
| Drivers | Windows® (32/64 bit); CUPS Linux (32/64 bit); Virtual COM (32/64 bit); Android™ |
| Software tools | PrinterSet; CustomPowerTool; Status Monitor; Custom Windows® API; AeroVcomService |
| Power supply | 24 Vdc ± 10% |
| Typical consumption | 1.6 A |
| Print head life | 100 km / 100M pulses |
| Cutter | Two-sided tear bar |
| Operating temperature | 0°C ~ 40°C |
| Dimensions (L x W x H) | 185.9 x 130 x 118.9 mm |
| Weight | 1.94 kg |
| Package contents | Device; quick guide; power supply; power cord; paper block guide; paper width reducer |
Models
All available models
911HL020900733
PRINTER TK180 ETH USB RS232 AVIATION
911HL021100733
PRINTER TK180 RFID UHF ETH USB RS232 AVIATION
