MODUS3
Compact kiosk printer with easy access for inspection
Key points
MODUS3
Compact and self-contained
Ultra-compact solution, compatible with standard rolls and pre-tensioner.
Energy saving
Operates at 19.5Vdc or 24Vdc, also for photovoltaic solutions.
Easy integration
Drivers, remote monitoring and APIs for immediate management.
Anti-jamming system
Integrated anti-jamming with presenter and paper chute.
Modular accessories
Presenter and paper chute kit available as options.
Gallery

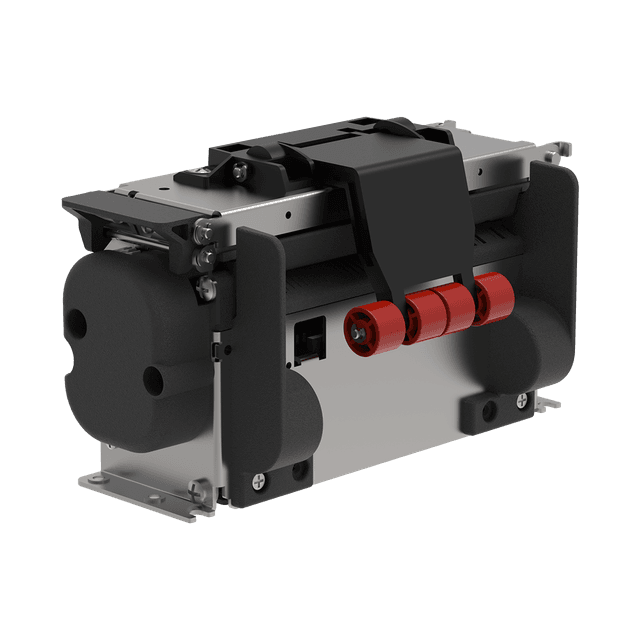

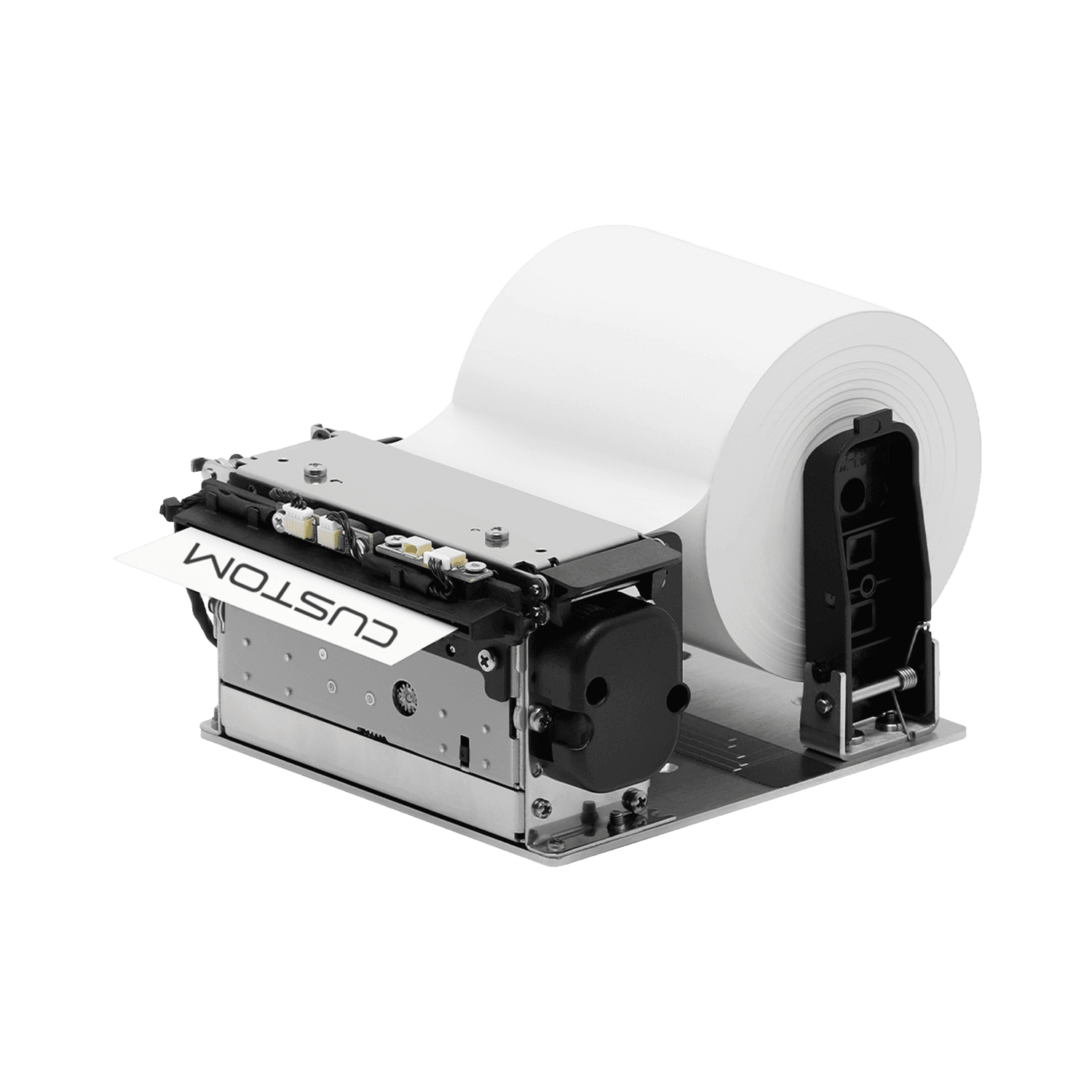

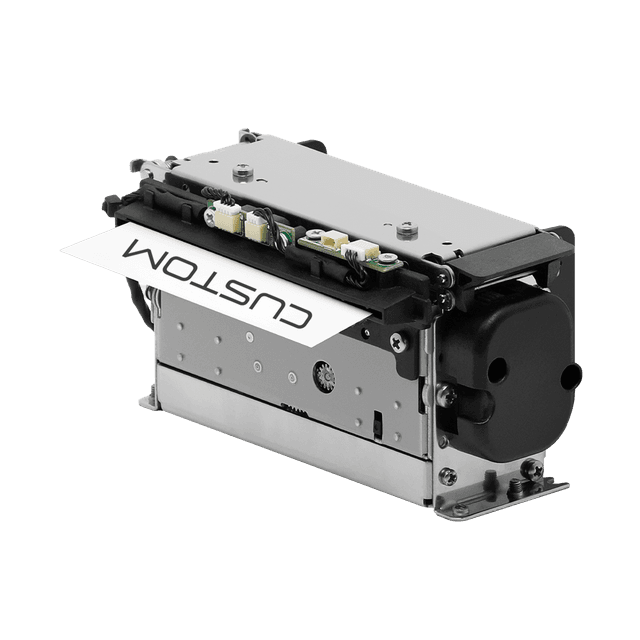

MODUS3 from every angle
Technical sheet
Technical sheet
| Printing Method | Thermal, fixed head |
|---|---|
| Number of dots | 8 dot/mm |
| Resolution | 203 dpi |
| Printing (mm/sec) | 200 mm/s |
| Character set | PC437, PC850, PC858, PC860, PC862, PC863, PC864, PC865, PC866, international |
| Supported Barcode | UPCA, UPCE, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128, CODE32, QRCode |
| Printing Format | Height/Width from 1 to 8, bold, reverse, underlined, italic |
| Printing Direction | Normal, 90°, 180°, 270° |
| Paper width | from 54 to 82.5 mm |
| Paper weight | from 58g/m² to 116g/m² |
| Paper thickness | from 63μm to 120μm |
| Printing width | from 48 to 80 mm |
| Roll Dimension | 120 mm, max. 160 mm with optional pretensioner |
| Sensors | Paper infeed Printing head temperature Lid closure Black mark on the non-thermal side, on the left Anti-Jam (only for model with presenter, optional for basic model) Paper near end optional |
| Emulation | CUSTOM/POS |
| Interfaces | USB RS232 |
| Flash Memory | 768 kB internal |
| RAM Memory | 128 kB internal |
| Drivers | Windows® (32/64 bit) – only on request WHQL and silent installation; Linux (32/64 bit); Virtual COM (Linux or Windows 32/64 bit); OPOS; JavaPOS |
| Software Tools | CustomPowerTool, PrinterSet, Status monitor, Windows and Android API |
| Electrical specification | Device: 24, 19.5 Vdc +/- 10% (low power mode) Power supply (optional): from 90 Vac to 264 Vac |
| Medium consumption | 0.8 A |
| Head Life | 150 Km / 100 Millions pulse (with recommended paper) |
| MCBF | Cutter : 1M cuts |
| Operating temperature | from -20°C to +70°C |
| Dimensions | 116 (L) x 51 (D) x 62 (H) mm 116 (L) x 96 (D) x 62 (H) mm with presenter 133 (L) x 167 (D) x 147 (H) mm with paper roll holder 133 (L) x 213 (D) x 147 (H) mm presenter with paper roll holder 116 (L) x 54 (D) x 67 (H) mm with pretensioner 116 (L) x 99 (D) x 67 (H) mm presenter with pretensioner |
| Weight | 400 gr 614 gr with presenter |
Models
All available models
915LF020200300
PRINTER MODUS3 X USB RS232 COMPACT
915LF020300300
MODUS3 X USB RS232 WITH PRESENTER
