Self Check-In Printers
KPM180H
Compact Self-Service Check-In Kiosk Printer
KPM180H
Extremely compact and reliable, Same model for ATB and BTP, Powerful autocutter, RFID (optional), Damage Dot Prevention, Automatic ticket length detection, Complete paper auto-loading without waste, and supports linerless baggage labels.
Key points
KPM180
ATB/BTP all-in-one
A single model for boarding passes and baggage tags.
Compact and reliable
Compact, robust design suitable for intensive operational environments.
Powerful autocutter
Reliable cutting with automatic ticket length detection.
Waste-free loading
Full auto-loading and support for linerless labels.
Airport standards
Compatible with CUTE/CUPPS, AEA/ITPS 2007-2022 and ATB, BTP, GPP emulations.

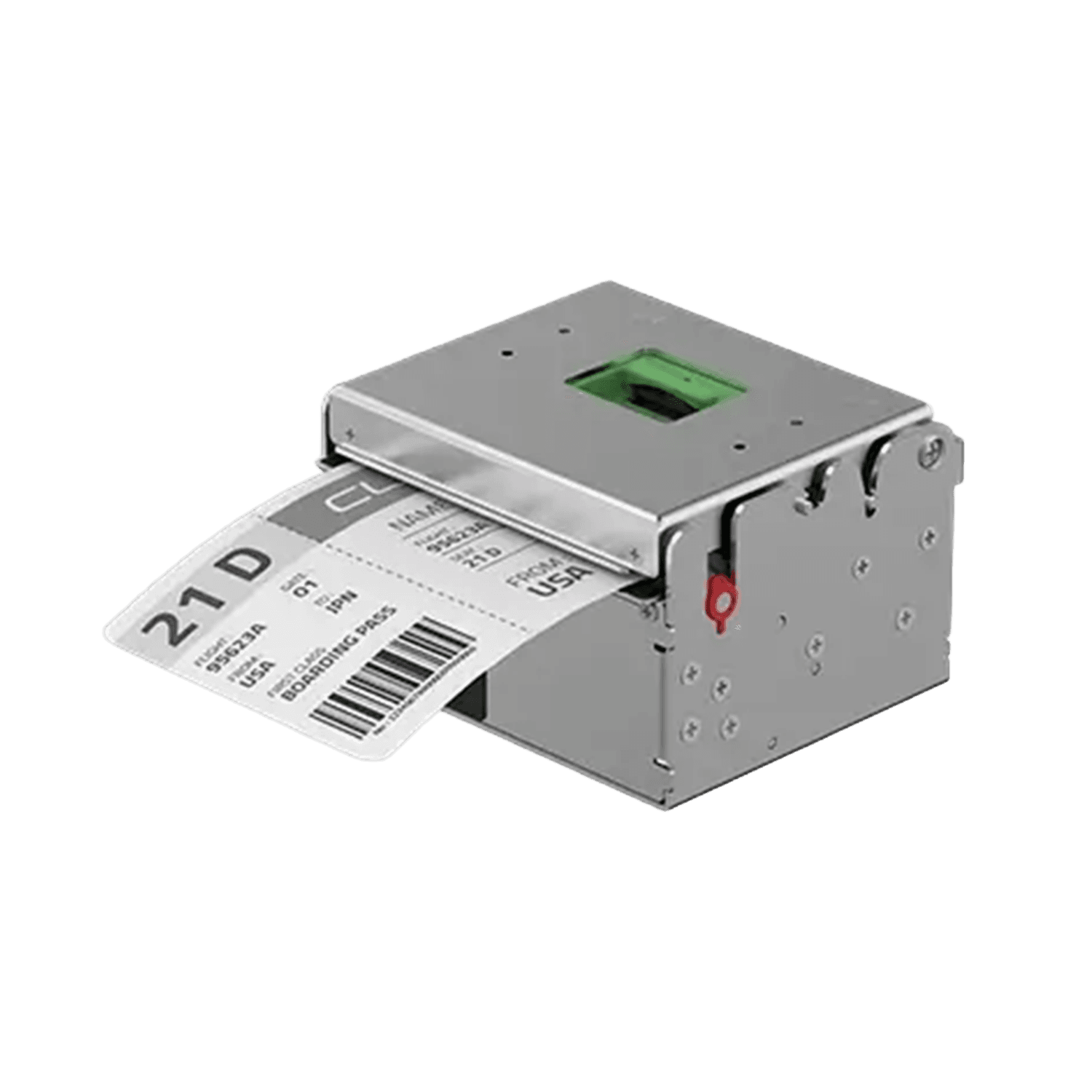

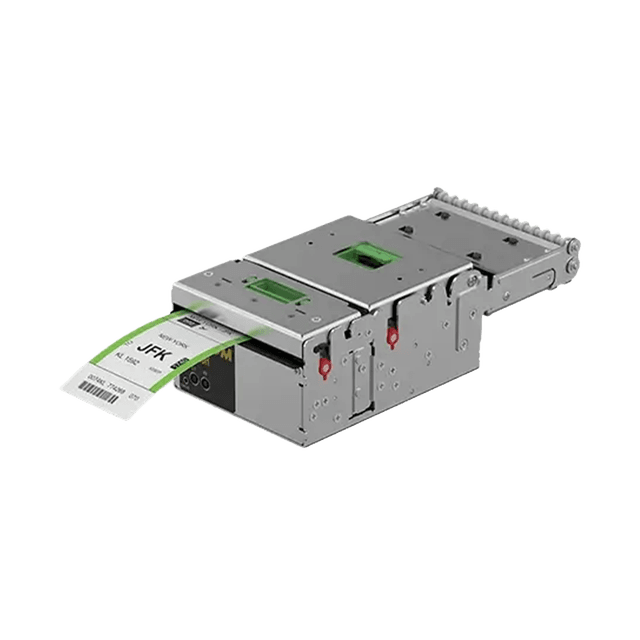

Gallery
KPM180H from every angle
Technical sheet
Technical sheet
| Printing method | Thermal, fixed head |
|---|---|
| Resolution | 200 dpi (8 dots/mm); 300 dpi (12 dots/mm) |
| Printing speed (max.) | 200 mm/sec at 200 dpi; 150 mm/sec at 300 dpi |
| Paper width | 20-82.5 mm |
| Paper weight | 70-255 g/m² |
| External roll diameter | 200 mm |
| Roll core diameter | 25 mm |
| Sensors | Paper presence; head temperature; paper-out presence; adjustable black mark or gap/translucent hole sensors; open cover; paper near end |
| Emulation | CUSTOM/POS; SVELTA |
| Interfaces | RS232; USB; Ethernet |
| Print driver | Windows® (32/64 bit), WHQL certification and silent installation available on request; Linux (32/64 bit); Virtual COM (Linux or Windows® 32/64 bit); OPOS; Android™; iOS |
| Software tools | PrinterSet; CustomPowerTool; Status Monitor; Custom Windows® API; Driver Manager |
| Special features | ISO fan-fold; wristbands; robust cutter; full cut; UHF RFID; high reliability; label management; cut&hold |
| Power supply | 24 Vdc ± 10% |
| Typical consumption | 1.5 A |
| Head life | 100 km / 100M pulses |
| Cutter | Full cut |
| Cutter life | 1,000,000 cuts |
| Operating temperature | -10°C ~ 60°C |
| Dimensions (D x W x H) | 149.5 x 108 x 67 mm |
| Weight | 1.5 kg |
| Package contents | Device; quick guide; NPE sensor; NPE cable; paper reduction guide with screw |
Models
All available models
915AH021300700
PRINTER KPM180H ETH USB RS232 CUT AVIATION
915AH021000700
PRINTER KPM180H RFID UHF ETH USB RS232 CUT AVIATION
915AH031200700
PRINTER KPM180H LL CUT PRES INTEGRATED RFID UHF AVIATION
915AH030200700
PRINTER KPM180H LL ETH USB RS232 CUT PRES AVIATION
915AH030700700
PRINTER KPM180H LL RFID UHF ETH USB RS232 CUT PRES AVIATION
